BrainFlow
BrainFlow is a library intended to obtain, parse and analyze EEG, EMG, ECG and other kinds of data from biosensors.
Key Features
9 Language Bindings ( Python, Matlab, C# and etc )
5 OS / Platforms ( Windows, Mac, Linux, Android, Devices )
Signal Processing and ML API
Getting Started
Requirements: Windows10+(64bit) PC with Bluetooth 4.0+ and Python3.7+(64bit)
Install BrainFlow python_package in terminal:
pip install https://github.com/SynchroniSI/brainflow/releases/download/v0.0.1/brainflow-0.0.1-py3-none-any.whl
Install requirements for python code sample in terminal:
pip install -r https://github.com/SynchroniSI/brainflow/releases/download/v0.0.1/requirements.txt

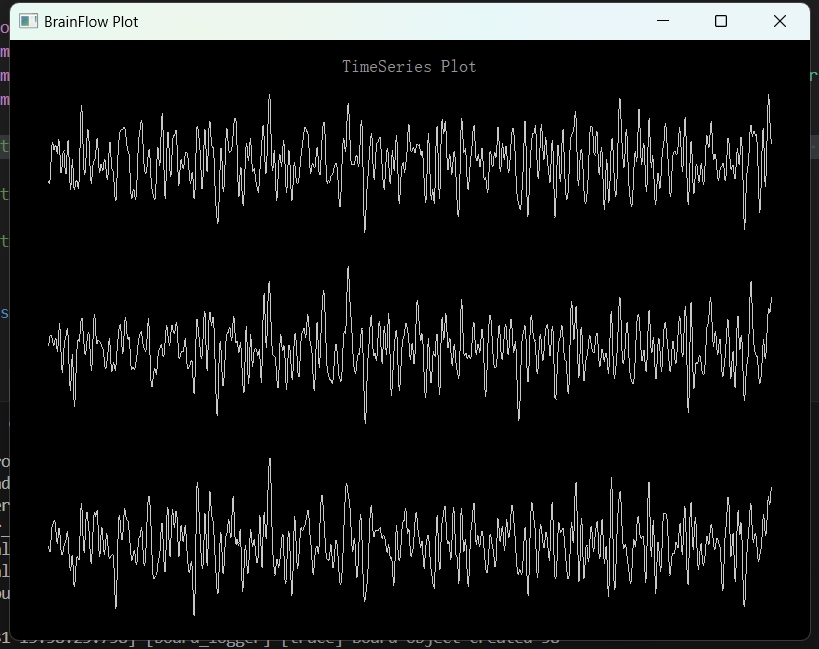

Run example code: Download plot_real_time_min.py
Power on Synchroni device and run below code in terminal:
python plot_real_time_min.py --board-id=58 --mac-address=C4:64:E3:D8:E6:C6 --timeout=5
param –board-id list:
Sync-Uno [board-id=57]
Sync-Trio [board-id=58]
Sync-Octo [board-id=59]
Sync-Neo [board-id=60]
param –timeout: [default=5, try increase timeout if you met issue]
param –mac-address: How to get MAC address of Synchroni device?
